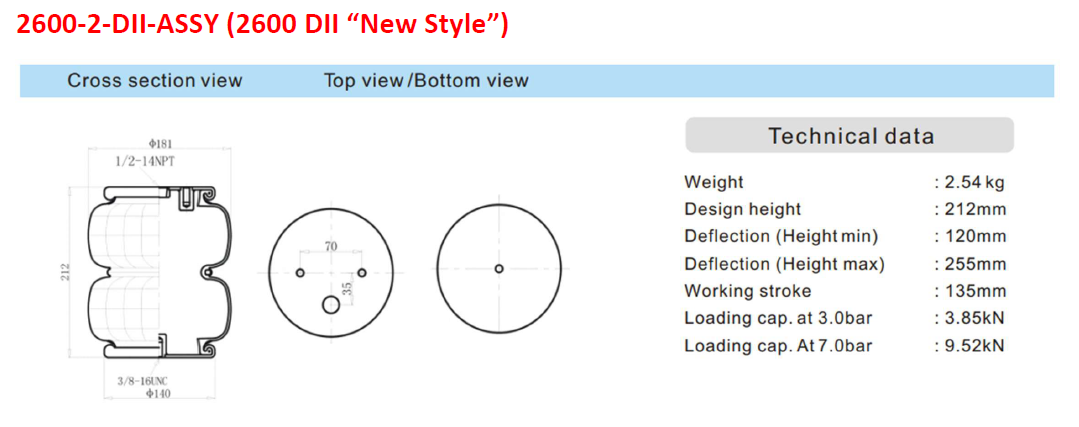

2600-2-DII-Assy - 2600 lb. Air Spring, Double Bellow, New Style
Bolt Hole Size: 3/8"-16
Bolt Hole Qty: 3
Fitting Hole: 1/2" Female NPT
Part Wt.: 5.6 lbs
OD Plate: 5.5"
OD Bag (MAX): 7.1"
Height Resting: 8.3"
Height MIN: 4.7"
Height MAX: 10"
Travel: 5.3"
Load at 43.5 psi: 866 lbs.
Load at 101.5 psi: 2140 lbs.
Bolt to Bolt: 2.7"
Bolt to Fitting: 1.3"
